1. Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF material.

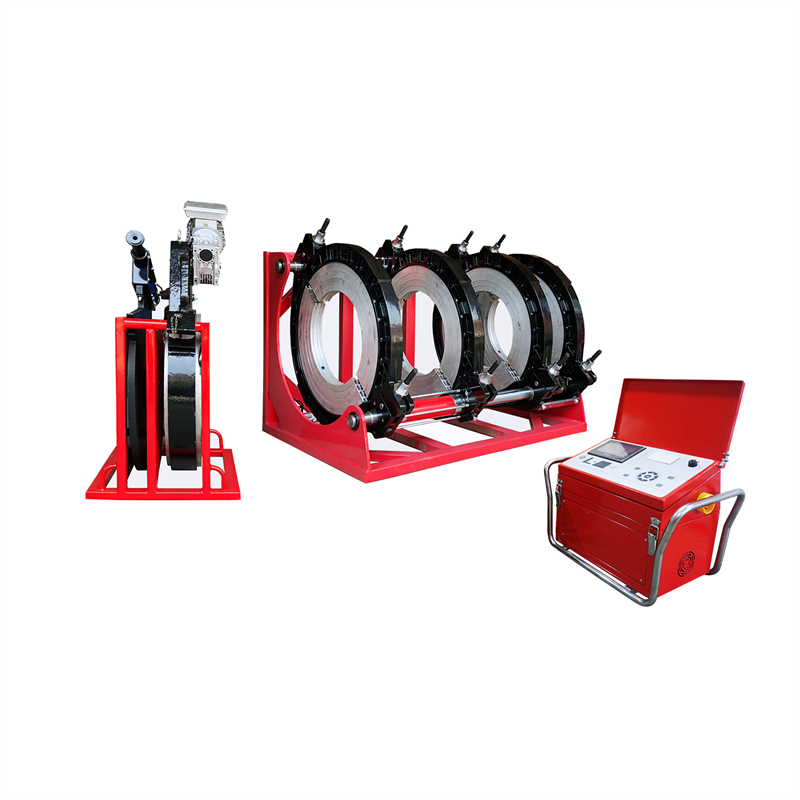

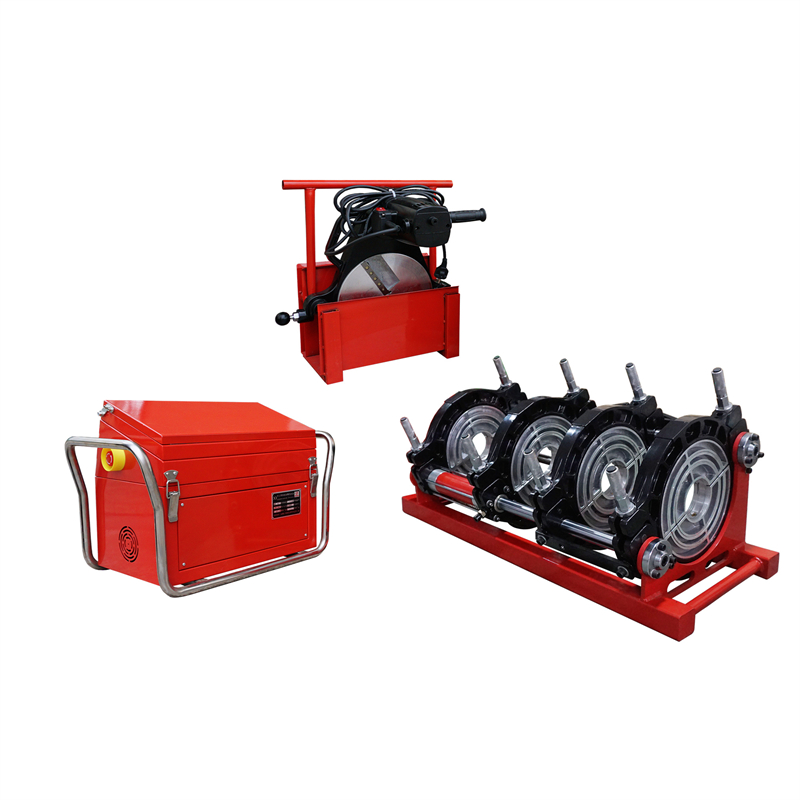

2. Consists of basic frame, CNC control hydraulic unit, milling cutter, heating plate, support and optional parts.

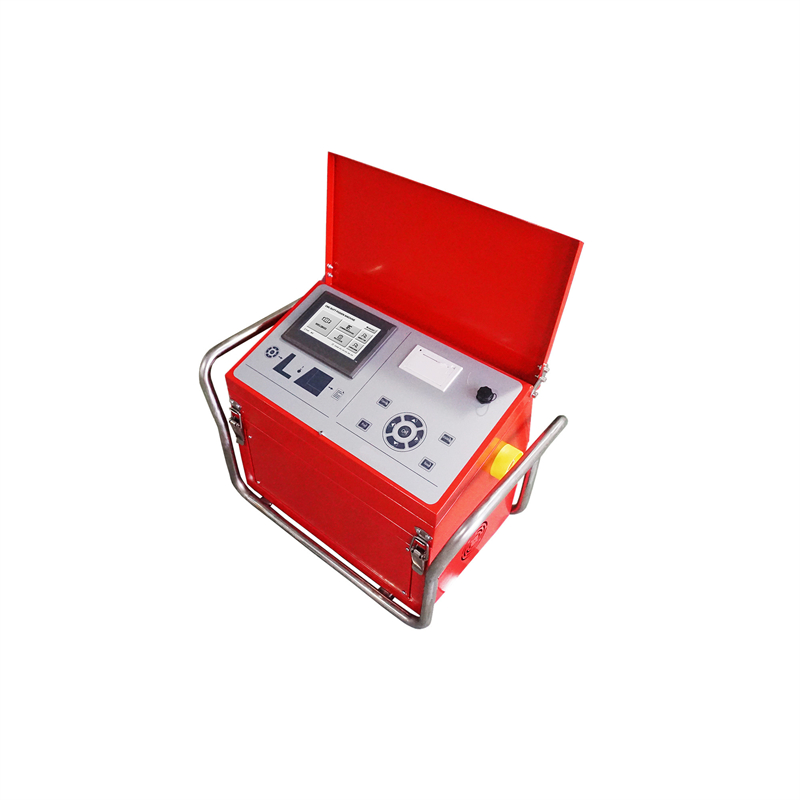

3. Equipped with PLC and touch screen control system.
4. Real-time data printing, recording function and USB port available.
5. Pre-installed welding standard such as DVS and so on.
6. Manual change over of heating plate high flexibility and easy operation.
| Model | CNC160 | CNC250 | CNC315 | CNC450 | CNC630 |
| Fusion Range(mm) | Φ63-Φ160 | Φ90-Φ250 | Φ90-Φ315 | Φ280-Φ450 | Φ400-Φ630 |
| Ambient Temp. | -5℃~+45℃ | -5℃~+45℃ | -5℃~+45℃ | -5℃~+45℃ | -5℃~+45℃ |
| Input Voltage | 220V±10% | 220V±10% | 220V±10% | 380V±10% | 380V±10% |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Total Power | 2.56KW | 4.05KW | 5.85KW | 7.98KW | 12.65KW |
| Total Weight | 112KG | 181KG | 239KG | 520KG | 575KG |
 |
Flange Adapter |
| O.D.160, 40-160 mm | |
| O.D.200, 63-200 mm | |
| O.D.250, 63-250 mm | |
| O.D.315, 90-315 mm | |
| O.D.355, 90-355 mm | |
| O.D.450, 200-450 mm | |
| O.D.500, 200-500 mm | |
| O.D.630, 315-630 mm |
1. Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF material.
2. Consists of basic frame, CNC control hydraulic unit, milling cutter, heating plate, support and optional parts.
3. Equipped with PLC and touch screen control system.
4. Real-time data printing, recording function and USB port available.
5. Pre-installed welding standard such as DVS and so on.
6. Manual change over of heating plate high flexibility and easy operation.
