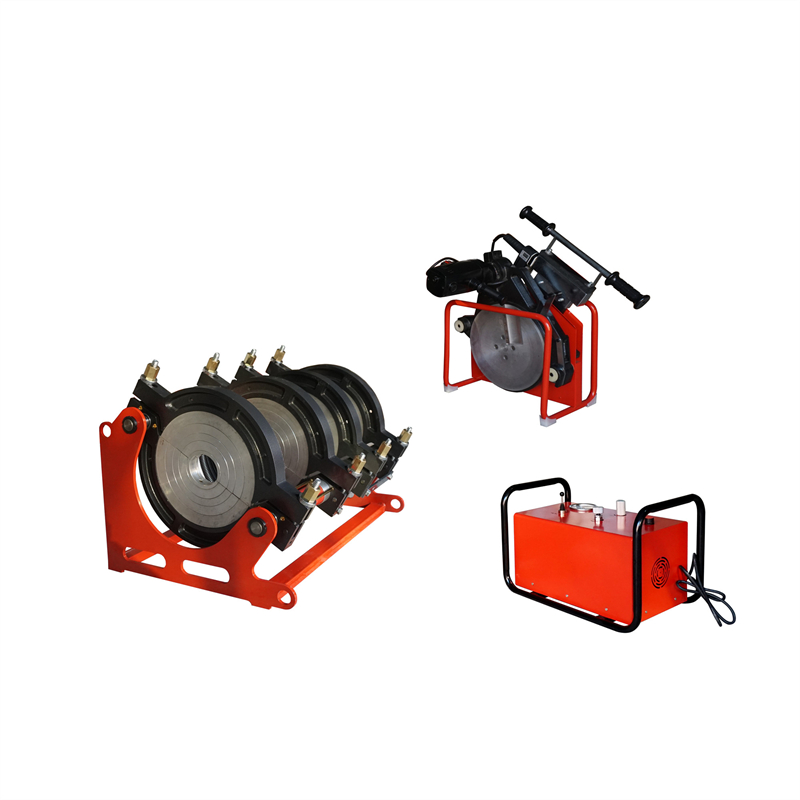

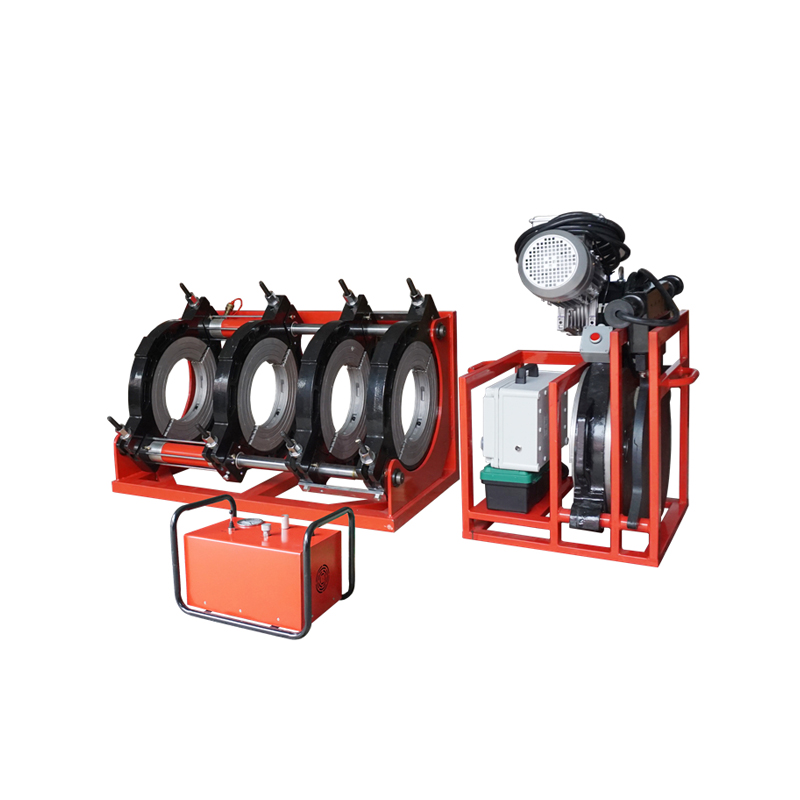

C Type Hydraulic

Model	WH160-C	WH200-C	WH250-C	WH315-C	WH355-C	WH400-C	WH450-C	WH500-C	WH630-C
Fusion Range(mm)	Φ63-Φ160	Φ63-Φ200	Φ90-Φ250	Φ90-Φ315	Φ160-Φ355	Φ250-Φ400	Φ280-Φ450	Φ315-Φ500	Φ400-Φ630
Ambient Temp.	-5℃~+45℃	-5℃~+45℃	-5℃~+45℃	-5℃~+45℃	-5℃~+45℃	-5℃~+45℃	-5℃~+45℃	-5℃~+45℃	-5℃~+45℃
Input Voltage	220V±10%	220V±10%	220V±10%	220V±10%	220V±10%	380V±10%	380V±10%	380V±10%	380V±10%
Frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Total Power	2.56KW	3.65KW	4.05KW	5.85KW	5.85KW	7.4KW	7.98KW	9.1KW	12.65KW
Total Weight	115KG	125KG	185KG	240KG	255KG	385KG	520KG	545KG	575KG
Total Volume	0.42m³	0.46m³	0.69m³	0.85m³	0.97m³	1.58m³	1.88m³	1.96m³	3.14m³

	Datalogger
	Overall Size(mm)	255×225×125
	Weight	6.5KGS
	Input Frequency	50/60HZ
	Power	24W
	Stored Records	2000 welding points
	User’s Interface	PC communication port USB connector
	Protection Grade	IP54

	Flange Adapter
	O.D.160, 40-160 mm
	O.D.200, 63-200 mm
	O.D.250, 63-250 mm
	O.D.315, 90-315 mm
	O.D.355, 90-355 mm
	O.D.450, 200-450 mm
	O.D.500, 200-500 mm
	O.D.630, 315-630 mm

Operation Manual_Semi-auto Hydraulic

Description

1. Suitable for butt welding of plasitc pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop.
2. Consists of basic frame, hydraulic unit, milling cutter, heating plate, support for milling cutter and heating plate, and optional parts.

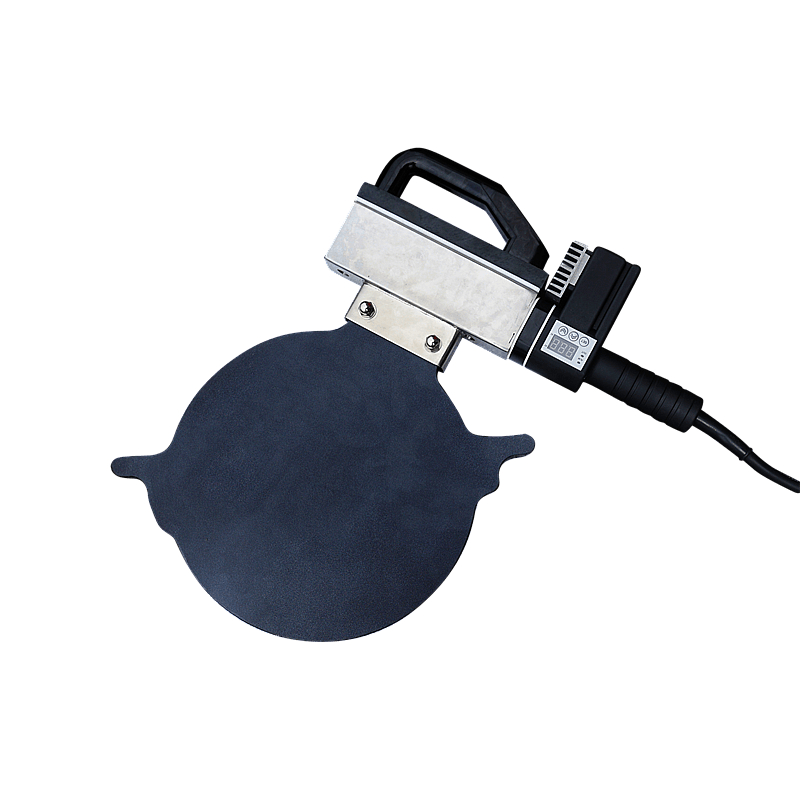

3. Removable PTFE coated heating plate with intelligent temperature control system, ensure high quality welding.
4. Portable milling cutter, miniature safety switch and motor protecion fuse.
5. Be made of lightweight and high strength material.
