1. Suitable for butt welding of plasitc pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop.

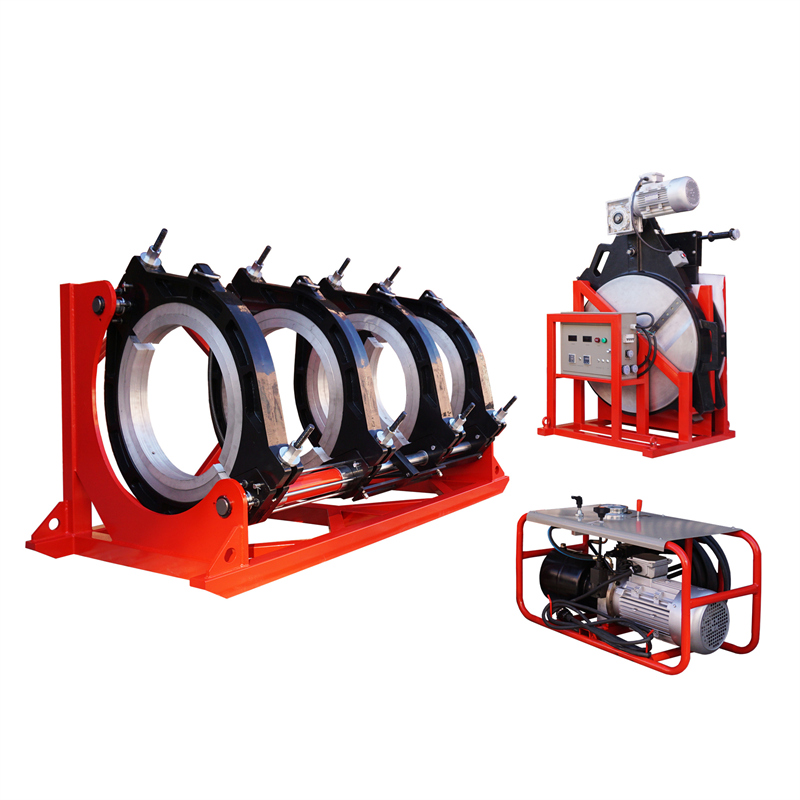

2. Consists of basic frame, hydraulic unit, milling cutter, heating plate, support for milling cutter and heating plate, and optional parts.
3. Removable PTFE coated heating plate with intelligent temperature control system, ensure high quality welding.
4. Portable milling cutter, miniature safety switch and motor protecion fuse.
5. Be made of lightweight and high strength material.
| Model | WH800-O | WH1000-O | WH1200-O | WH1600-O |
| Fusion Range(mm) | Φ630-Φ800 | Φ800-Φ1000 | Φ1000-Φ1200 | Φ1200-Φ1600 |
| Ambient Temp. | -5℃~+45℃ | -5℃~+45℃ | -5℃~+45℃ | -5℃~+45℃ |
| Input Voltage | 380V±10% | 380V±10% | 380V±10% | 380V±10% |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Total Power | 16.5KW | 22.7KW | 26.7KW | 52.5KW |
| Total Weight | 1100KG | 2200KG | 3000KG | 7900KG |
| Total Volume | 5.13m³ | 21.2m³ | 20GP | 40HQ |
 |
Datalogger | |
| Overall Size(mm) | 255×225×125 | |
| Weight | 6.5KGS | |
| Input Frequency | 50/60HZ | |
| Power | 24W | |
| Stored Records | 2000 welding points | |
| User’s Interface | PC communication port USB connector | |
| Protection Grade | IP54 | |
